Transducer Power Suppliers & USB adapters
Transducer Power Delivery
Wall-plug 90-230VAC Power Supply with a Selection of Connectors
PC USB Connectivity
Seamless USB connectivity for RS-232 and RS-485 Transducers
Independent of AC Supply
The USB powered Communicator enable portable use
Free PC Software
Communication and Datalogging Software Package available for Download

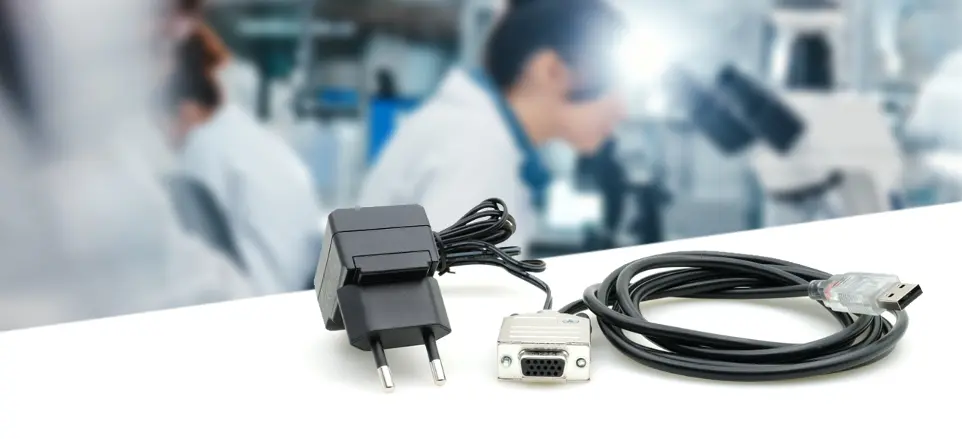

Sens4 offers hassle-free transducer connectivity solutions to PC systems via the USB port. The wall-plug solution powers the transducer independently of the PC, while the USB-powered version provides portable use, independent of mains AC supply.
The S4-Connect adapter is designed for programming transducers without an RS-232 or RS-485 interface. The S4-Connect communicates over the power line and is intended for configuration and setup of transducer parameters.
Power Supply and USB Communicators - Buy Now!
Specifications
PRG-WPxx-xxxx-xx
| |
| USB Interface | USB 2.0 type A |
Baud rates | 4800, 9600, 19200, 38400, 57600, 115200 baud |
Data bits | 8 bit |
Stop bit | 1 bit |
Parity and handshaking | None |
Environment conditions | |
Operating ambient temperature | -20 to +50 °C |
Media temperature | -20 to +50 °C |
Storage ambient temperature | -20 to +80 °C |
Protection rating, EN 60529/A2:2013 | IP40 |
Humidity, IEC 68-2-38 | 98%, non-condensing |
Power supply | |
Supply voltage | 90-264 VAC |
Frequency | 47 - 63 Hz |
Current Consumption | 0.2 mA (max) |
Output Voltage | +12VDC |
Output Current | 25 mA |
Internal fuse | 100 mA (thermal recoverable) |
Materials | |
Connector D-SUB, backshell | Nickel-plated Zinc alloy |
Connector D-SUB, screws | Zinc-plated Steel |
Approvals | |
CE | EN61000-6-2, EN 61000-6-3 |
RoHS compliance | Directive EU 2015/863 |
Specifications are subject to change without further notice
